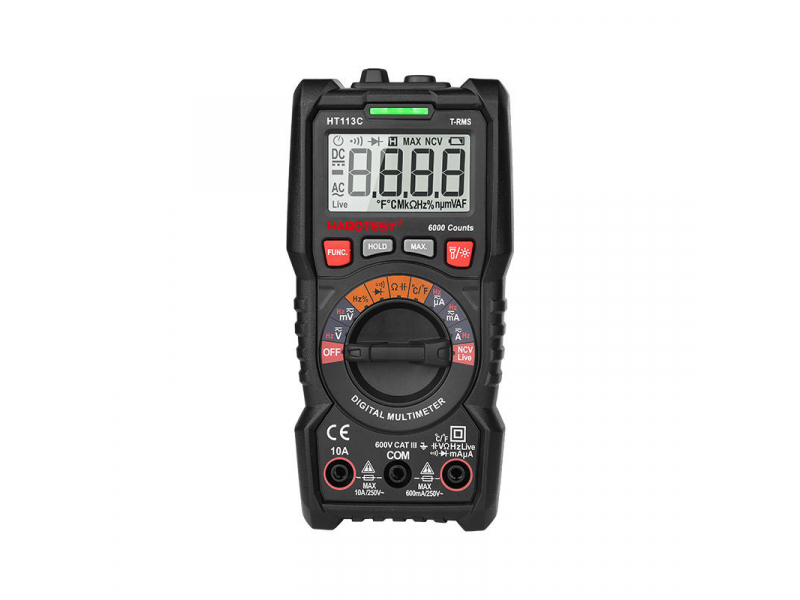

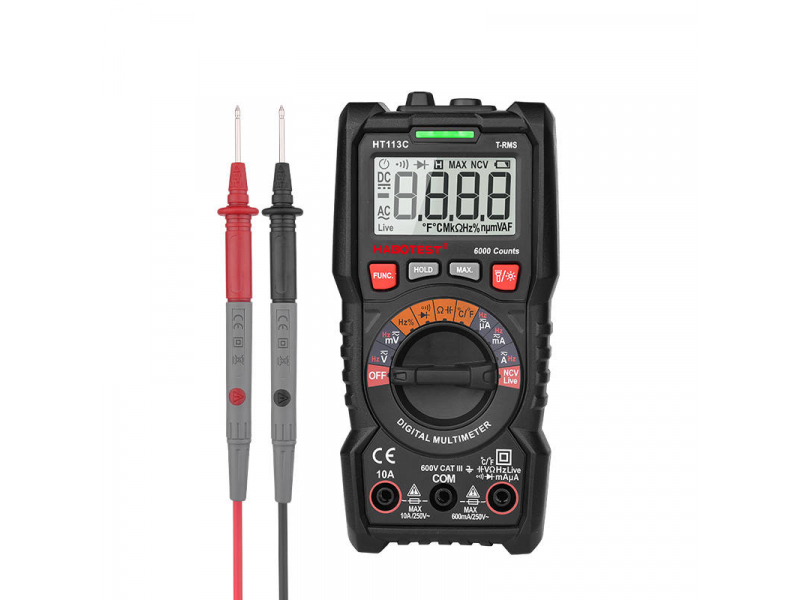

Habotest HT113C digital universal multimeter
Equip yourself with the lightweight and handy Habotest HT113C digital universal multimeter, which will allow you to conveniently and safely measure voltage, current or resistance. Habotest HT113C is equipped with a practical stand so you can put the product on the shelf, its advantage is also the NCV function, the ability to test diodes and a flashlight. Made of soft material, the casing is pleasant to the touch, but also extremely durable, resistant to wear and fall.
Many useful functions
The Habotest HT113C digital universal multimeter offers a number of functions that are perfect for DIY and electrical work. The device allows you to measure DC and AC voltage, DC and AC current and resistance, in addition, it allows you to test diodes and offers NCV function. Special buttons will allow you to conveniently change functions, while the easy-to-read display provides access to the results you need. The number of counts is 6,000, moreover, the multimeter allows measuring continuity, fill factor and data storage.
Thoughtful design
The device is distinguished by its handy design and weighs only about 220 g. Thanks to the use of soft material, the housing of the device is pleasant to the touch, and it also stands out for its high wear and fall resistance. The multimeter is easy to transport and facilitates various types of electrical work, and thanks to the stand you can put it on a table, for example. The low battery indicator and backlight are also a plus.
Producer
Habotest |
Model
HT113 |
HT113B |
HT113C |
DC voltage measurement range
200mV/2V/20V/200V/600V ±(0,5%+3) |
400mV/4V/40V/400V/600V ±(0,5%+3) |
600mV/6V/60V/600V±(0,5%+3) |
AC voltage measurement range
200V/600V ±(1,0%+3) |
400mV/4V/40V/400V/600V±(1,0%+3) |
600mV/6V/60V/600V±(1,0%+3) |
DC current measurement range
20mA/ 200mA ±(1,2%+3) 10A ±(2,0%+3) |
400uA/4000uA/40mA/400mA ±(1,2%+3) 10A ±(2,0%+3) |
600uA/6000uA/60mA/600mA±(1,2%+3) 10A ±(2,0%+3) |
AC current measurement range
- |
400uA/4000uA/40mA/400mA±(1,5%+3) 10A ±(2,0%+3) |
600uA/6000uA/60mA/600mA±(1,5%+3) 10A ±(2,0%+3) |
Resistance measurement range
200ꭥ/2kꭥ/20kꭥ/200kꭥ/2Mꭥ/20Mꭥ ±(1,0%+3) |
400ꭥ/4kꭥ/40kꭥ/400kꭥ/4Mꭥ/40Mꭥ±(1,0%+3) |
600ꭥ/6kꭥ/60kꭥ/600kꭥ/6Mꭥ/60Mꭥ±(1,0%+3) |
Capacitance measurement range
- |
- |
10nF/100nF/1µF/10µF/100µF/1mF/10mF±(4,0%+5) 100mF ±(5,0%+5) |
Frequency measurement range
- |
- |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz±(1,0%+3) |
Measuring range of fill factor
- |
- |
1%~99% ±(3,0%+3) |
Live Test
No |
No |
Yes |
NCV
No |
Yes |
Yes |
Diode testing
Yes |
Yes |
Yes |
Continuity
Yes |
Yes |
Yes |
Number of counts
2000 |
4000 |
6000 |
Data storage
Yes |
Yes |
Yes |
True RMS value
No |
Yes |
Yes |
Bandwidth
40~400Hz |
1kHz |
1kHz |
Low battery indicator
Yes |
Yes |
Yes |
Automatic power off function
Yes |
Yes |
Yes |
Illumination
Yes |
Yes |
Yes |
Flashlight
No |
Yes |
Yes |
Power supply
2x AAA battery 1.5V |
2x AAA battery 1.5V |
2x AAA battery 1.5V |
Safety
EN61010-2-030 EN61010-2-033 CAT III 600V |
EN61010-2-030 EN61010-2-033CAT III 600V |
EN61010-2-030 EN61010-2-033CAT III 600V |
Weight
Approx. 220 g |
Approx. 220 g |
Approx. 220 g |
Dimensions
151 x 75 x 48 mm |
151 x 75 x 48 mm |
151 x 75 x 48 mm |
